Raleigh Sprite 5 Speed Revisited

I've owned a late 1960s-era Raleigh Sprite for several years now, but I have never been totally happy with the work I did on it originally. I recently decided to take the Sprite back out of storage and re-do some things to improve the mechanical condition of this bike.


















I ended up putting on fresh brake cables and replacing the left shifter cable. The unique Sprite shifter on the top tube uses a unique cable. The disc head of the cable is larger than a derailleur cable head but smaller than a brake cable head.






To make a cable, I took a standard disc headed brake cable and ground the disc down to size.

I used standard brake cables from the Bell Pitcrew kit you buy in Wal-Mart or Target for the brakes. They work fine. I was able to re-use all the existing cable housings.








I also re-greased and reset the bearings on the S-5 hub. The result is a better functioning Sprite.










If you've ever wondered what a "high performance" Raleigh Sports would be, the Sprite with S5 hub is basically what you would have. It's a fun bike with a little more range and gearing flexibility than a Sports, but it still rides and handles like a Sports.





This is an enjoyable bike, even if the shifting is a bit more complicated than a 3-speed.

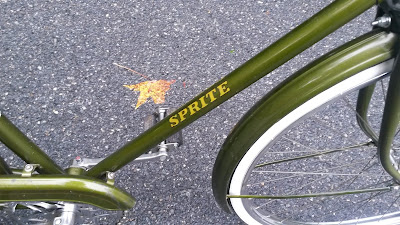

The simple "Sprite" logo on the down tube is very plain compared to some of the other types that have a number "5" printed over them.
I also added fresh handgrips (Kenda brand Dare knock-offs) and cleaned up the Duro white walls. This bike originally came with Dunlop "White Sprite" white walls tires. I added the Duro tires a couple of years ago, but they have few miles on them. It's a fun, lively bike.
